The X-620E barcode scanner, compatible with WR-S8W, WR-S5W, and BL-A5W models, offers fast and accurate scanning performance. With wireless connectivity, ergonomic design, and high decoding capability, it ensures efficient data capture for retail, logistics, and industrial applications. Reliable and easy to use, it's ideal for everyday operations.
Marca :
ACEYArtículo No. :
X-620E(WR-S8W,WR-S5W,BL-A5W))Personalización :
OEM&ODM AvailableOrden (MOQ) :
1 SetCumplimiento :
CE CertifiedPago :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcGarantía :
One Year Warranty With Lifetime SupportOrigen del producto :
ChinaPaquete :
Internal: Anti-Collision Protectio, External: Plywood CaseEnvío :
By Air, Sea, Express, etc.Handheld Bar Code Scanning Device
Product Description

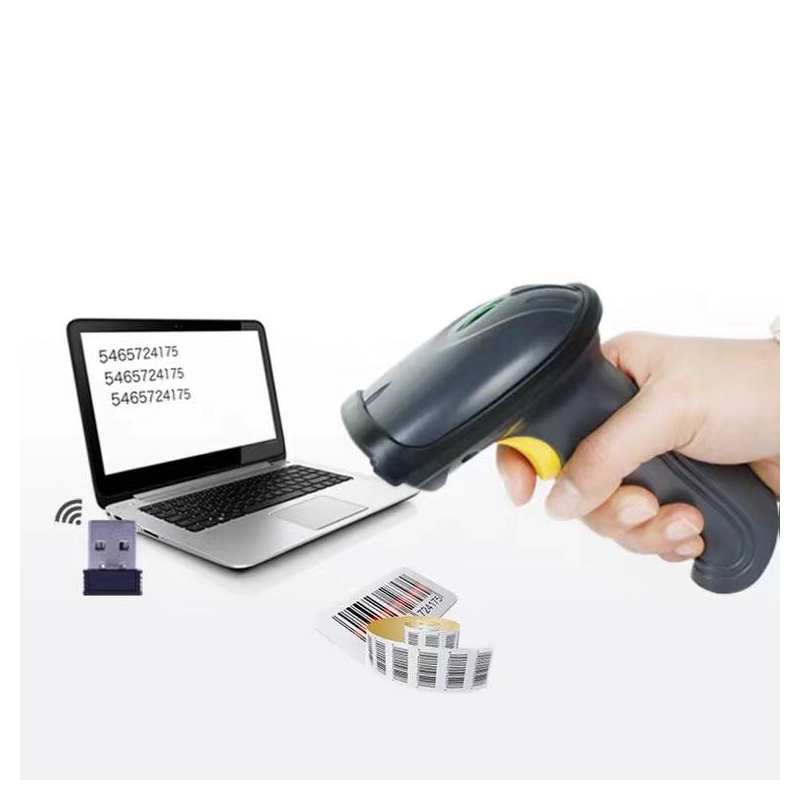

The X-620E Barcode Scanner is a high-performance, wireless scanning device designed for fast and accurate barcode reading. Compatible with WR-S8W, WR-S5W, and BL-A5W modules, it supports both 1D and 2D codes with excellent decoding speed and precision. Its ergonomic gun-style design ensures comfortable long-term use, while its stable wireless transmission enables flexible operation in various environments such as retail, warehousing, logistics, and manufacturing. The X-620E offers plug-and-play convenience via USB or Bluetooth and delivers reliable scanning even in low-light or high-speed scenarios.
Technical Parameters
|
Physical parameters |
|
|
Material |
ABS+PC+PVC |
|
Power supply mode |
DC 5V ±5% |
|
Power |
180mw (working);25mw (standby);360mw (maximum peak) |
|
Battery |
3.7V 750mAH lithium polymer battery |
|
Charging time |
About 2 hours full |
|
Weight |
146±5g (excluding wire) |
|
Performance parameters |
|
|
Support interface |
USB wired/wireless |
|
Communication distance |
50 m |
|
Light source |
Laser LED 650±20nm (in line with national first-class laser safety standards) |
|
Memory |
64K (about 3500 14-byte one-dimensional bar codes) (capacity can be customized) |
|
Support barcode |
UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN, 39 code, Kudba code, cross 2 code, industrial 2 code, matrix 2 code, 128 code, 93 code, 11 code, MSI/PIESSEY,UK/PLESSEY,UCC/EAN128 code, etc. |
|
Resolution |
Minimum 0.1mm(4mils) |
|
Depth of field |
3-9cm(0.1mm width);3.5-45cm(0.3mm width) |
|
Decoding speed |
200 times/second |
|
bit error rate |
1/5 million |
|
Trigger mode |
Manual; Automatic continuous scanning; Infrared automatic scanning, bracket automatic scanning (optional) |
|
Read width |
60mm at30mm (from object);98mm at100mm (from object) |
|
Reading distance |
10-600mm reading elevation angle 60 reading inclination angle 45 |
|
Scan width |
5cm ― 30cm |
|
Method of lifting |
Buzzer, indicator light |
|
Print contrast |
30% |
|
Decoding angle |
Angle 30 °, elevation angle 75 °, deflection angle 65 ° |
|
Transverse scanning of cylinder |
Diameter 35mm |
|
Environmental parameters |
|
|
Protection level |
Certified by IP 54 |
|
Operating environment |
0 to 50°C / 32 to 122 °F |
|
Storage environment |
0 to 50°C / 32 to 122 °F |
|
Operating humidity |
20 - 85% (without condensation) |
|
Storage humidity |
20 - 85% (without condensation) |
|
Antistatic capability |
15KV air discharge |
|
Seismic resistance |
Free fall 1.2m fall in the air |
Product Display
