This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and it is easy to use. It is ideal for laboratory research and development and sample production.
Marca :
ACEYArtículo No. :
ACEY-ERP100WPersonalización :
OEM&ODM AvailableOrden (MOQ) :
1 SetCumplimiento :
CE CertifiedPago :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcGarantía :
One Year Warranty With Lifetime SupportOrigen del producto :
ChinaPaquete :
Internal: Anti-Collision Protectio, External: Plywood CaseEnvío :

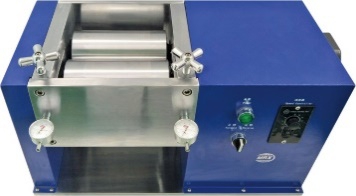

By Air, Sea, Express, etc.Electric Powered Horizontal Type Rolling Press Machine
Product Description
The electric roller mill is mainly suitable for electric rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum. It is especially suitable forthinning and increasing the density of pole plates ofcl lithium battery ean energy materials. This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and it is easy to use. It is ideal for laboratory research and development and sample production.
Features
*The roller has high hardness, and the surface is plated with hard chromium, the hardness can reach HRC62, and it has abrasion and corrosion resistance.
*Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
*High rolling precision, roller cylindricity≤±2um.
*Horizontal design, convenient for the feeding and rolling of strip materials.
*Adopt gear meshing rotation to realize the roller pressing.
*The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.
*Electric rolling, forming automation, can be reversed operation.
*Small size, easy operation, flexible and quick to use.
Technical Parameters
|
Roller size: |
diameter Φ96mmX100mm |
|
Roller cylindricity |
≤±2um. |
|
Roller hardness: |
HRC62 |
|
Press strength: |
Max:4T |
|
Roller finish: |
above 0.4 |
|
Rolling thickness: |
0～2mm, the gap can be adjusted |
|
Roll placement: |
horizontal placement |
|
Tablet thickness: |
speed can be adjusted. |
|
Power source: |
voltage AC220V/50Hz, power 120W |
|
Feeding speed: |
0～40mm/s |
|
Dimensions: |
L505mm*W365mm*H625mm |
|
Equipment weight: |
65KG |
Product Display
